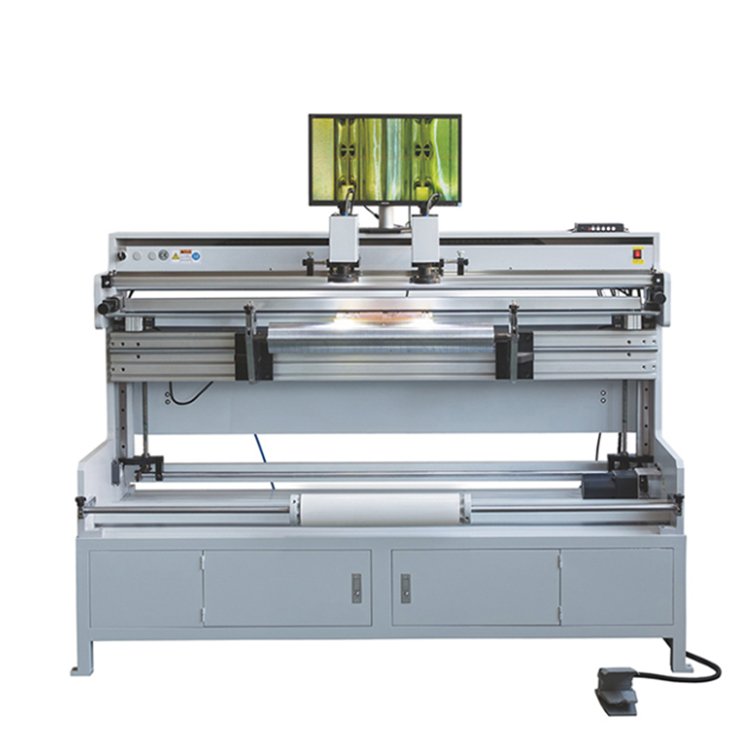

KSTB-A Plate mounting machine with video inspection
1.Theprinting platecan bestuckin telescope
2.Faster sticking the printing plate.Ease of operation.Higher production capacity.
3.Applied toprinting the reliefprinting materialslike soft rotary printing andresin printing
- Product Introduction
Product introduction：
1.Employedup-and-downadjustable precisescrewnuit.JapaneseSINCO
highgradeamplified lens.CcDcamera.HFliquid crystal monitorfir
displayer
2.Adoptedupperand down adjustablejapanese SINCOhigh-grade
amplifierCCD camera and HD liquid crystal monitor forits displayer3.Thecamera can beadjustedin alldirections.Higherprecision of printing
platingadhesion andaccurateregistering.
4.Theprinting platecan bestuckin telescope
5.Faster sticking the printing plate.Ease of operation.Higher production
capacity.
6.Applied toprinting the reliefprinting materialslike soft rotary printing
andresin printing
Main Technical Parameters：
| MaxcylinderlengMaxcylinderMachineSizeLMachineSize | weight（k | |||||
| model | Perimeter | w（mm） | ||||
| （mm） | H（mm） | |||||
| KSTB-A-1000m | ||||||
| m | 1000 | 1200 | 1800 | 600 | 1650 | 280 |
| KSTB-A-1200m | ||||||
| 1200 | 1200 | 2000 | 500 | 1650 | 320 | |
| m | ||||||
| KSTB-A-1300m | ||||||
| 1300 | 1200 | 2300 | 004 | 1650 | 340 | |
| m | ||||||
| KSTB-A-1500m | ||||||
| 1500 | 1200 | 2600 | 004 | 1650 | 400 | |
| m | ||||||
| KSTB-A-2000m | ||||||
| m | 2000 | 1200 | 3100 | 004 | 1650 | 700 |
