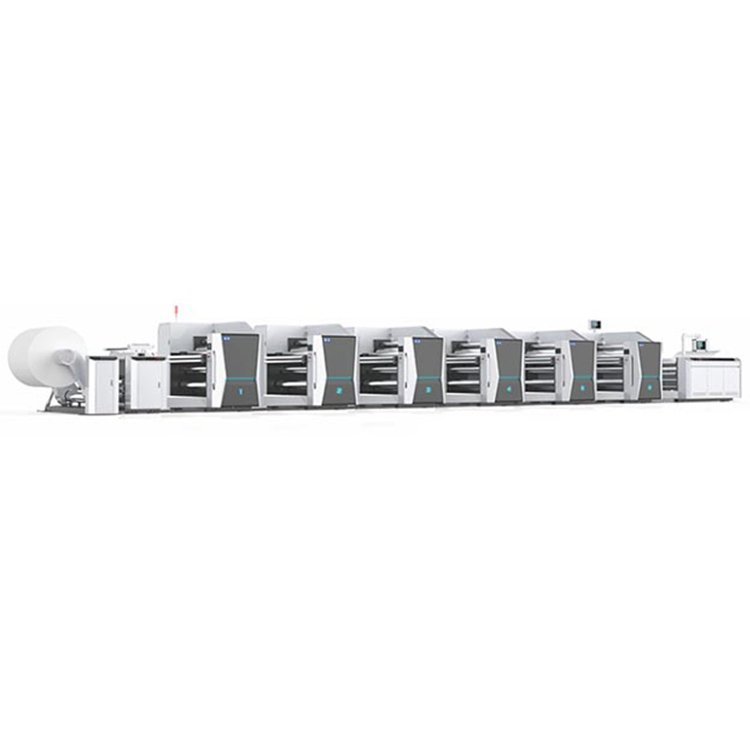

Product introduction：

l、Application：

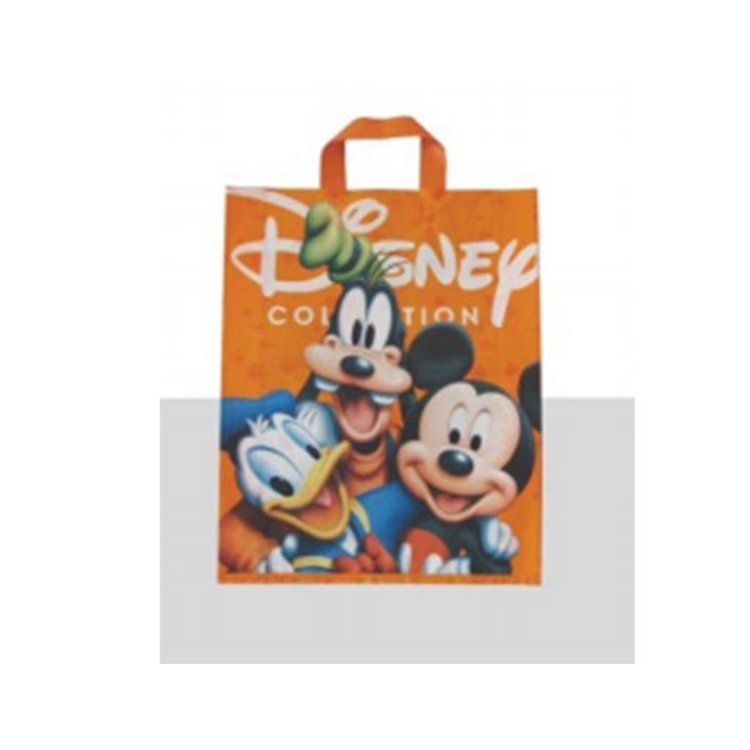

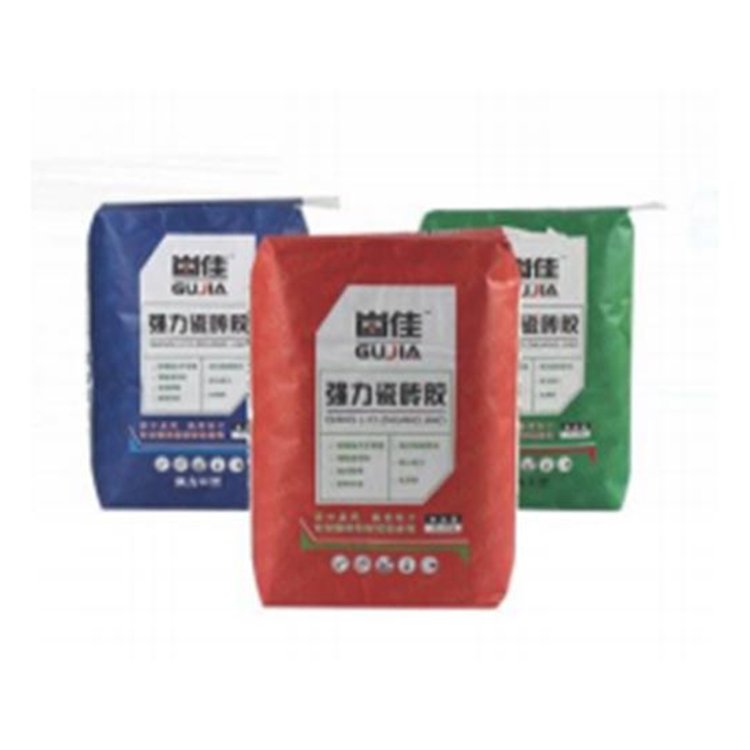

Paper cups,paper bags,carton pre-printing,food packaging,tobacco and a lcohol outer packaging,drug packaging,daily necessities,non-woven fabri cs,plastic films,industrial products,and other flexible packaging mater ials.

2、Main features：

1.The whole machine is controlled by PLC and servo motor control system:A nd equipped with remote service device to facilitate and quickly solve pro blems：

2.The color registration adopts automatic computer automatic color regist ration and HD color still picture monitoring,which is convenient for the observation of printing quality；

3.Unwinding adopts shaftless hydraulic automatic feeding,which is suitab le for 3 6 inch paper core；

4.The high-performance deviation correction system is adopted for dischar ging and deviation correction to ensure the linear stability of the substr ate operation process and the end face uniformity of the winding finished product；

5.High precision ceramic anilox roller,fully enclosed chamber doctor bla de and pneumatic automatic ink pumping system are used for inking：

6.Applicable ink:water-based ink,solvent ink and UV ink；

7.The printing pressure is adjusted by electric control,which is conveni ent and fast for color registration；

8.Plate loading adopts shaftless air top device,which is convenient for rapid plate changing：

9.High precision tension sensor,multi-stage tension control；Floating ro ller detection to ensure accurate and stable printing tension；

10.Independent extended oven,electric heating and drying unit,high effi ciency and energy saving.Heat transfer oil or steam heating mode can also be selected：

11.The material rewinding is controlled by frequency conversion motor and hydraulic automatic blanking.

Main Technical Parameters：
