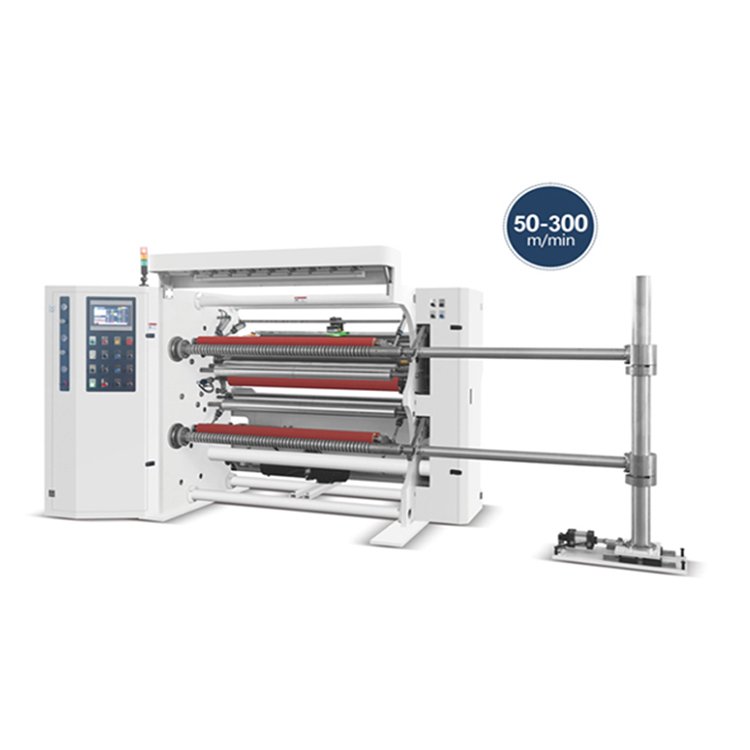

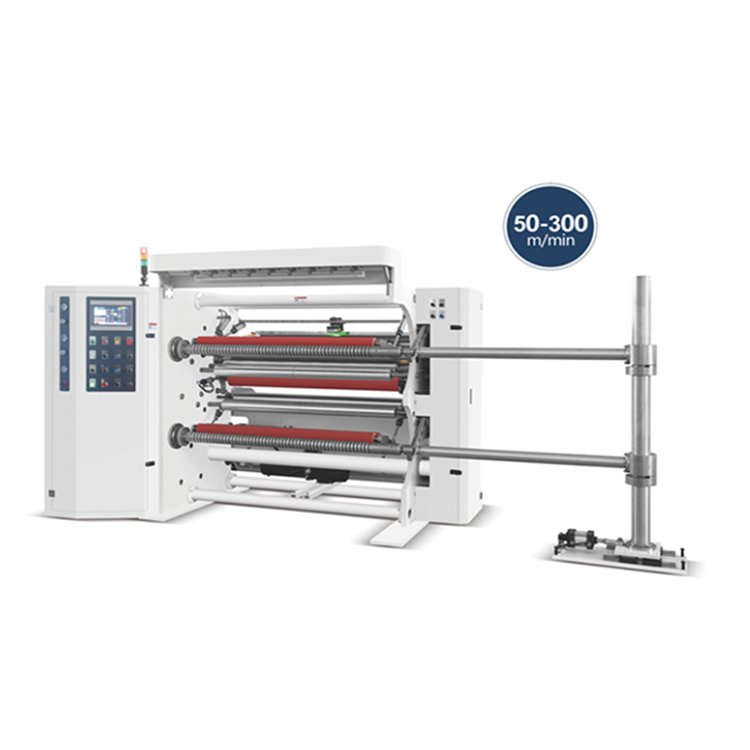

KSGWFQ-A Automatic High Speed Slitting Machine

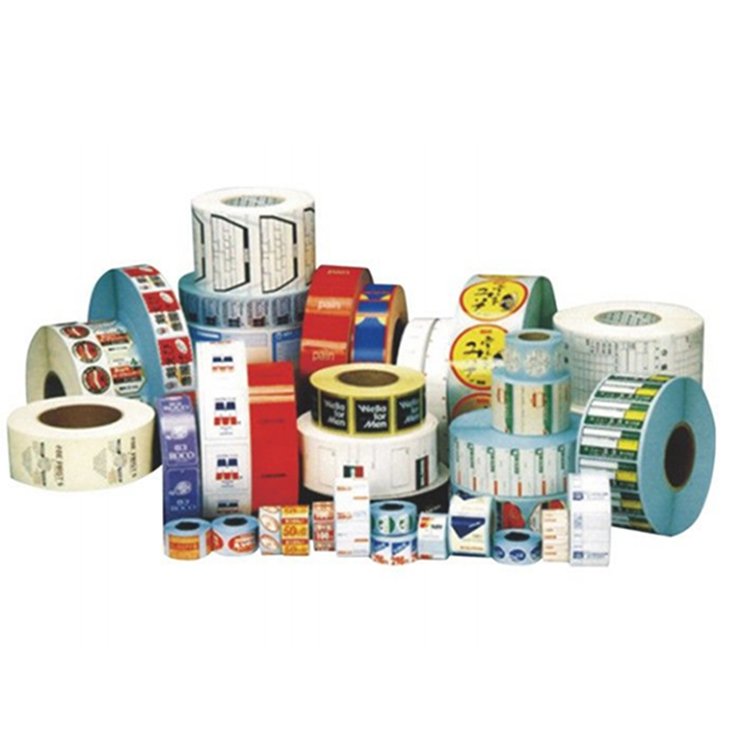

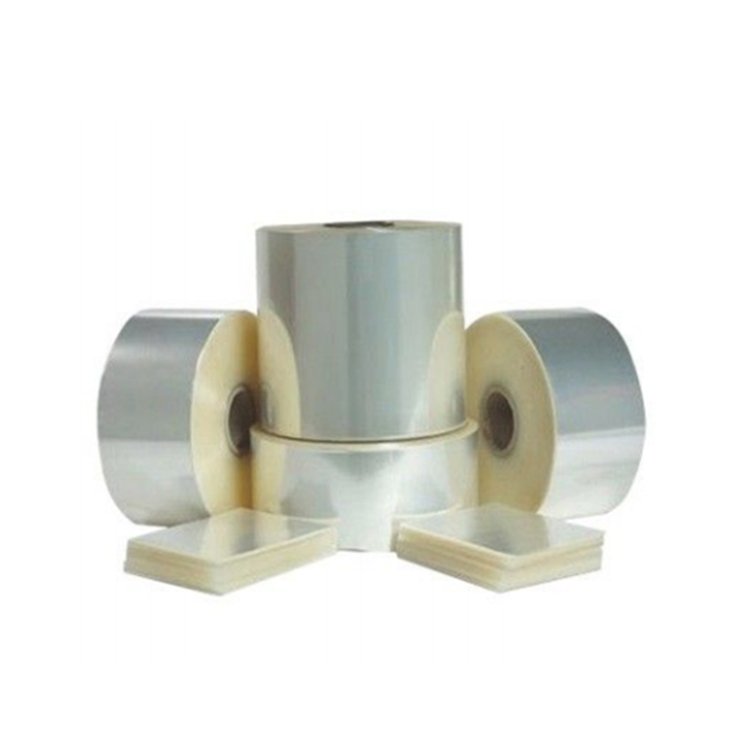

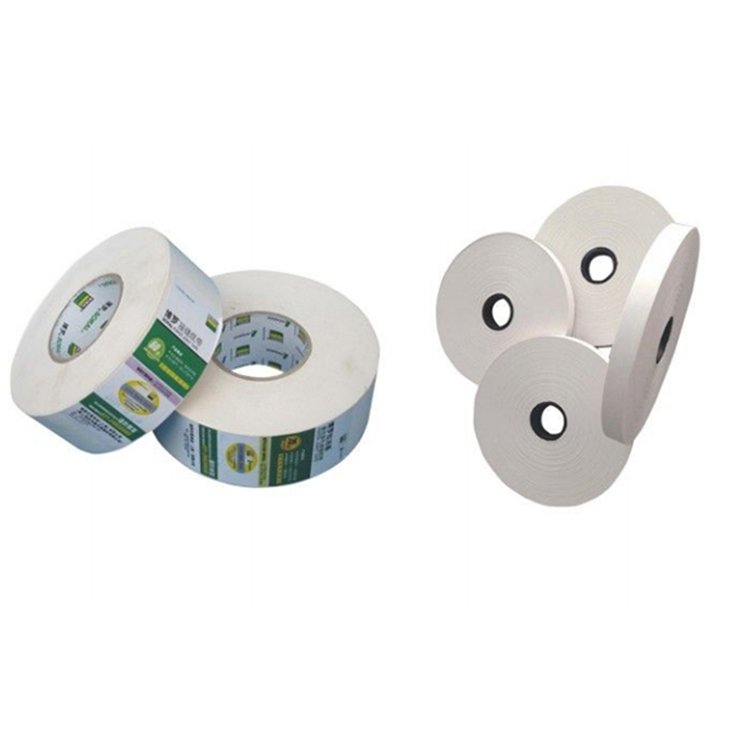

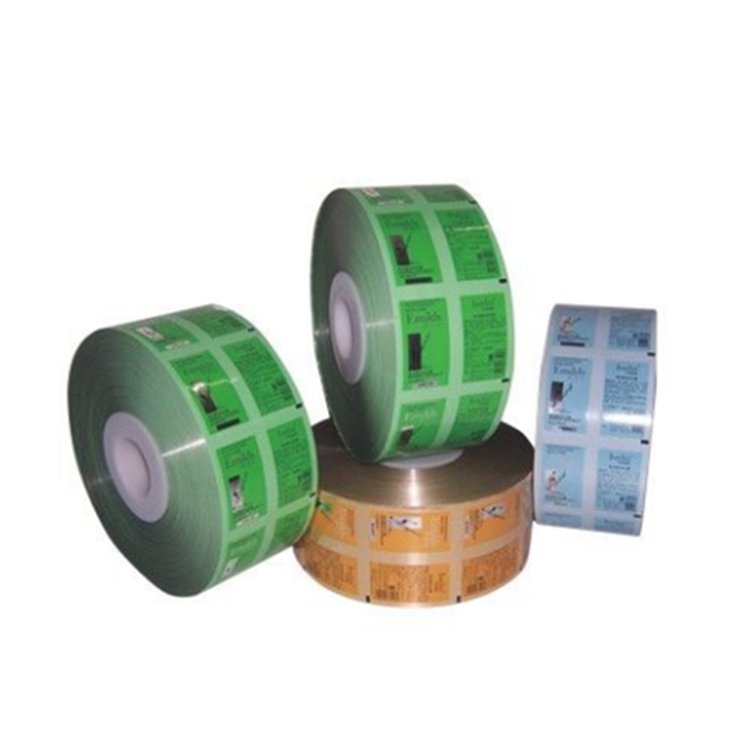

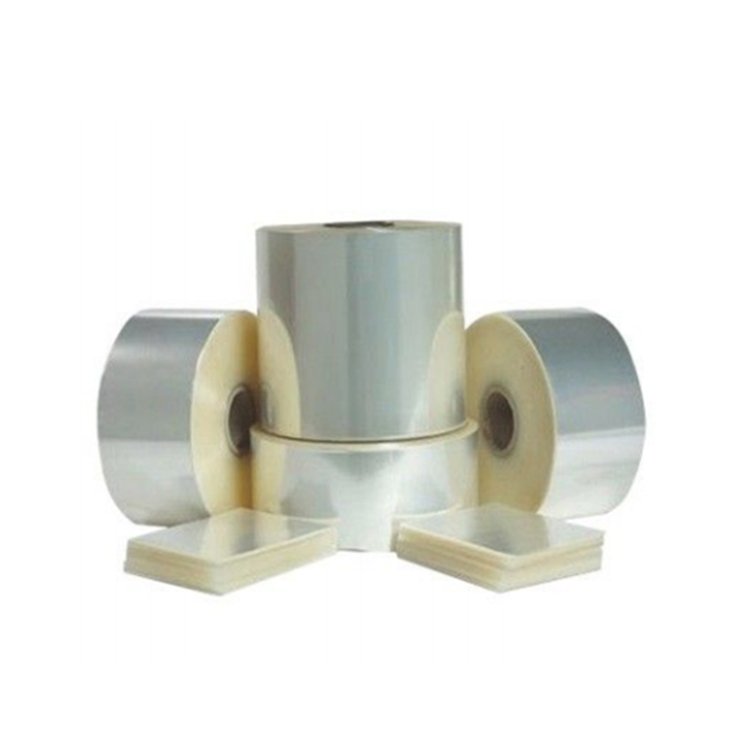

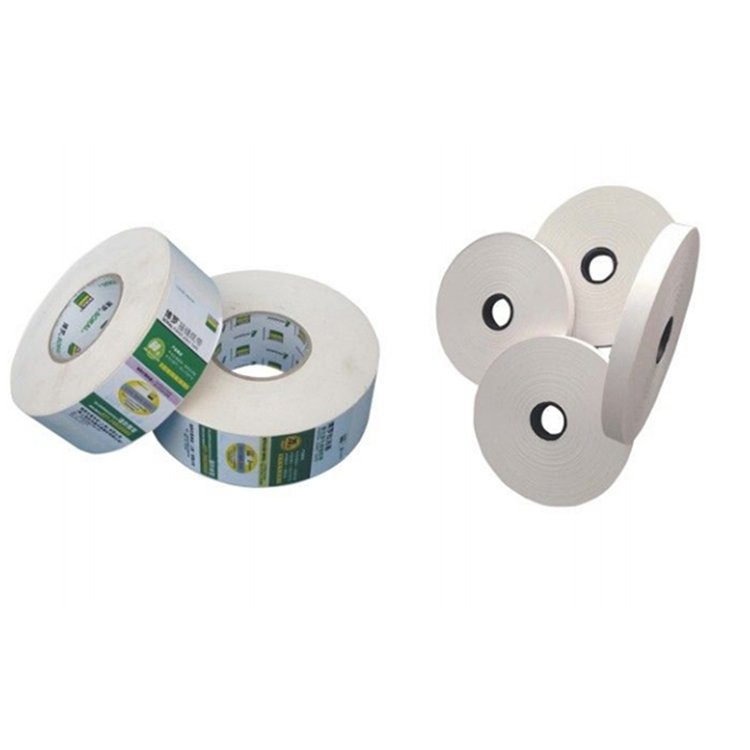

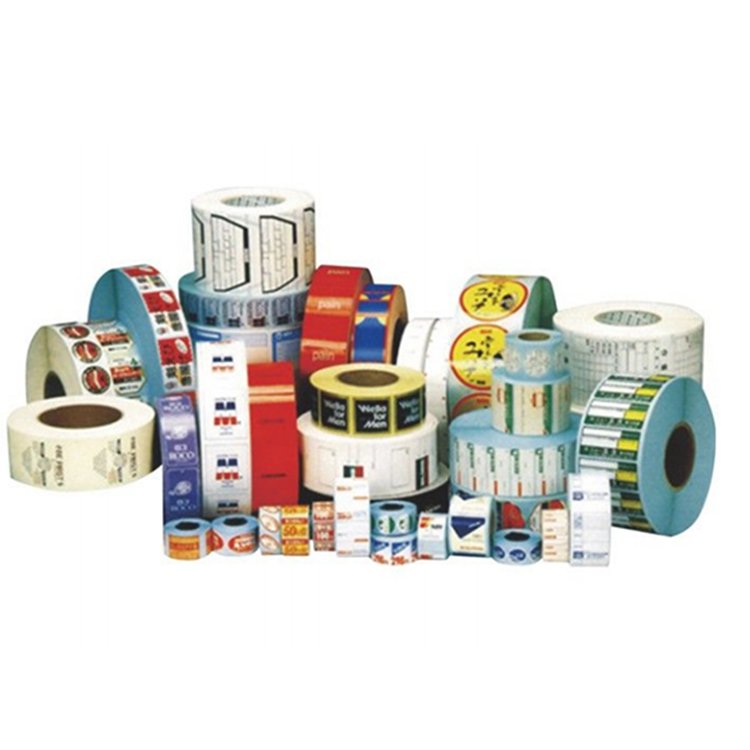

Applicable materials：This machine is suitable for slitting web paper,pet,OPP,CPP,PE,PS,PV C and computer anti-counterfeiting labels,electronic computers,optical m aterials,film rolls,foil rolls,all kinds of web paper,composite films, films and all kinds of materials after printing.
- Product Introduction
Product introduction：
machine
1.Applicable materials：

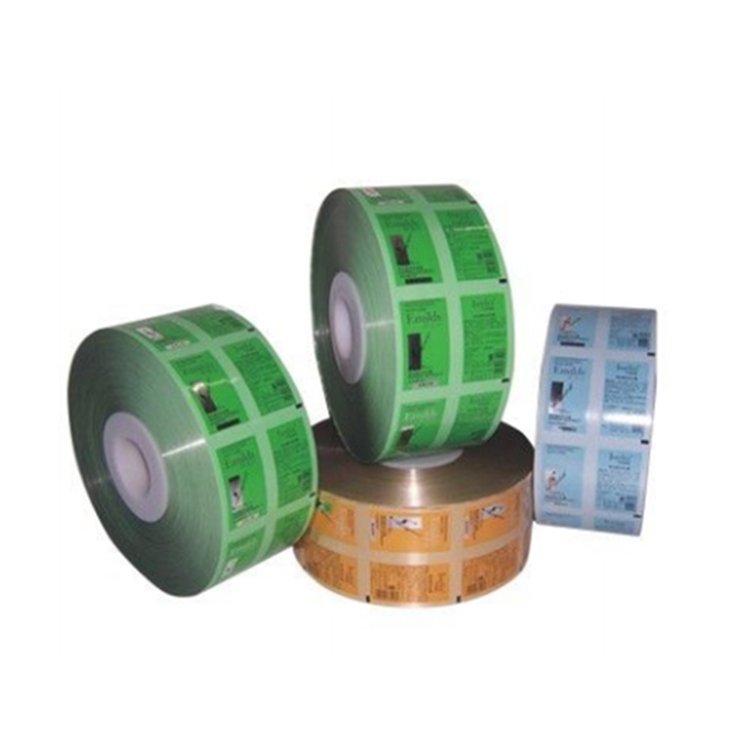

This machine is suitable for slitting web paper,pet,OPP,CPP,PE,PS,PV C and computer anti-counterfeiting labels,electronic computers,optical m aterials,film rolls,foil rolls,all kinds of web paper,composite films, films and all kinds of materials after printing.
2、Main features：
1.Unwinding is equipped with independent shaftless hydraulic feeding,whi ch can bear more than 1000kg；
2.3inch air shaft is adopted for winding；
3.Slitting speed：300m min；
4.Servo motor drive and PLC system control；
5.Equipped with flat knife and round knife,suitable for film and paper s litting：
6.There is a receiving platform between the unwind room and the main mach ine,which is convenient for receiving materials；
7.Equipped with rubber stick,pressing stick and scratch prevention devic e；
9.The rewind equipped with automatic detection device of winding diameter.
Main Technical Parameters：
| Machine model | KSG WFQ-A-1300mm | KSG WFQ-A-1500mm | KSG WFQ-A-1800mm | |
| Maximum material width | 1300mm | 1500mm | 1800mm | |
| Slitting materi al width | 20-1300mm | 20-1500mm | 20-1800mm | |
| Maximum unwinding diameter | 01000mm | 01000mm | 01000mm | |
| Maximum rewinding diameter | 0600mm | 0600mm | 0600mm | |
| Paper tube inner hole | 3inch | 3inch | 3inch | |
| Slitting speed | 50-300m/min | |||
| Edge Deviationcorrection accurac y | ≤0.1mm | ≤0.1mm | ≤0.1mm | |
| Total power（kw） | 16KW | 20KW | 26KW | |
| Machine weight（kg） | 2800kg | 3200kg | 3600kg | |
| Overall dimension（m） | 2×2.8×1.8 | 2×3.0×1.8 | 2X3.5×1.8 | |
| Other optional | Other options1.Rewinding 6-inch shaft2.Slip shaft winding3.Automatic paper tube of laser spot lamp4.Automatic tool moving device5.Motor automatic waste collector | |||
