Product introduction：

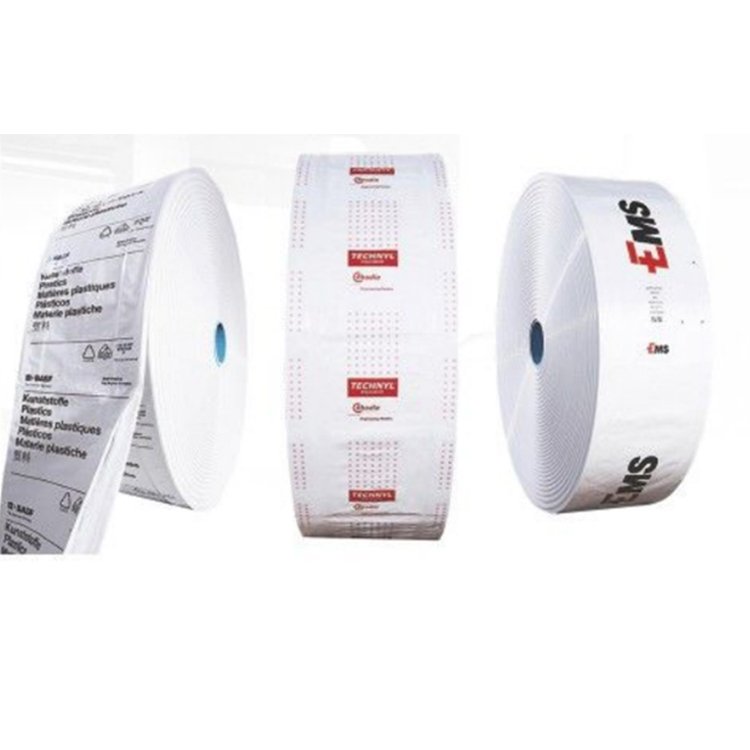

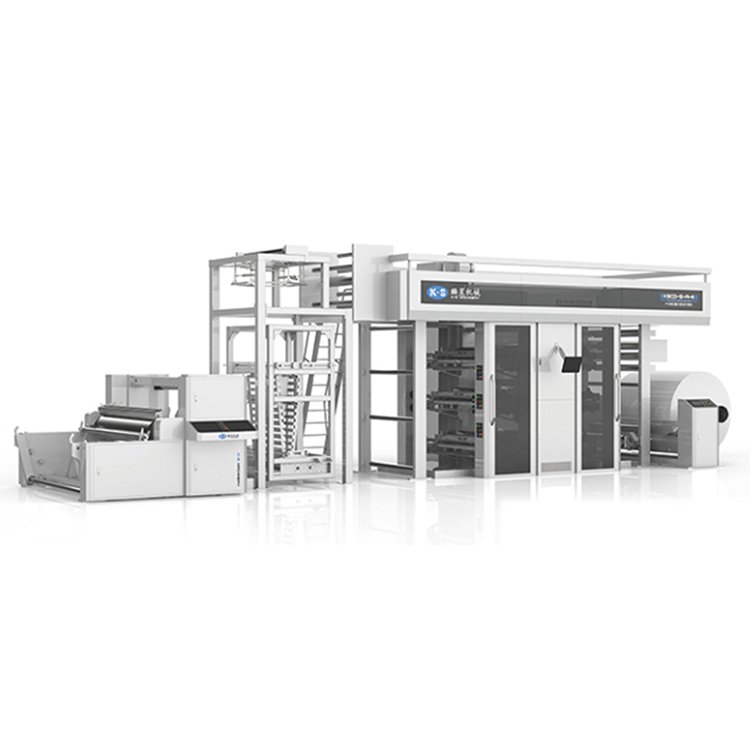

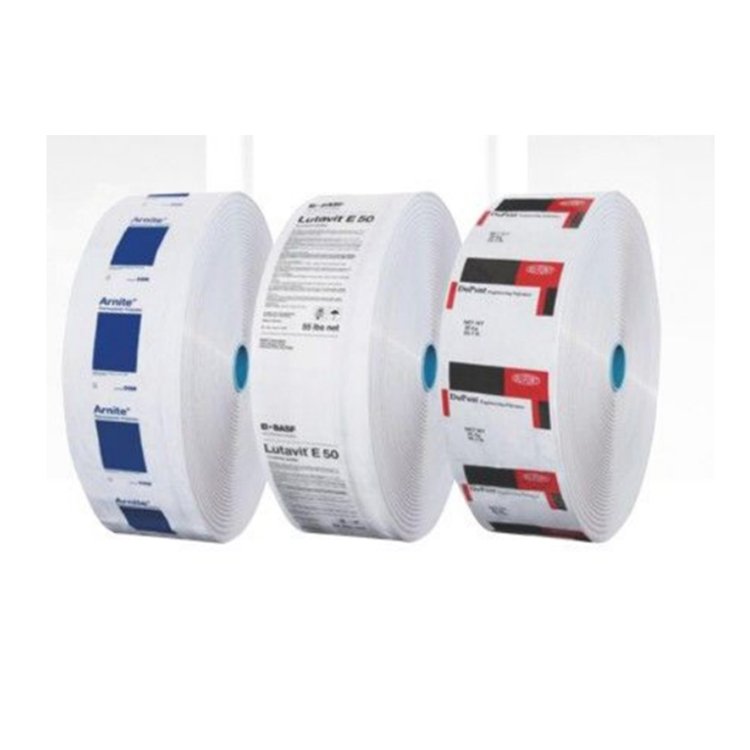

I.The machine is a printing embossing edge inserting and rewinding machine which takes the flexible photosensitive resin plate as the substrate,tran smitsink through theaniloxroller andprints thesubstratewithliquidi nk:The machine is composed of unwind unit corona treatment deyiation co rrection unit,traction feeding unit,printing unit,drying unit,detectio nunit,rewinding traction unit,embossing unit,edge inserting unitandr ewinding unit.The whole machineis driven by servo and controlled by PCs ystem:The machine has reasonable structure,fast printing speed and simpl e operation It is an ideal flexible packaging equipment such as FFS bag a ndwoven bag inChina.
II.characteristic：
1. The whole machine is centrally controlled by PLC system, 360 degree elec tric color registration（full-automatic computer automatic color registrat ion is optional），high-definition color still picturo monitoring whichis convenient for the observation of printing quality；
2.The unwinding unit adopts single station structure：3+6” shaftle SS feeding mode:Automatic deviation correction and constant tension cont rol:Bquipped with refueling warning and paper break shutdown device：
3.The whole machine is driven by high precision servo motor：
4.Unwinding traction adopts double cots topress and feed paper,and the pressure is controlled by pneumatic componcnts:Thc tapcr control technolo gy is used to control the tension to ensure the color registration accurac yi
5.Tho unwind adopts high powor corona machine for surfacc material treatm ont tostrengthen tho printing adhesion sothat the ink will not fade：
6.The printing unit adopts ceramic mesh roller ink transfer,two way clos edink scraping mode, and the ink supply pump automatically supplies ink:Hydraulic clutch of mesh rollor and plate rollor,automatic separation aft or shutdown:The indepondent motor drives the mosh roller to prevent thei nk from solidifying on the surface of the mesh roller and blocking the mes hhole.
7.The embossing die adopts high precision alloy abrasives,which has long service life andis not easy to be damaged：
Theedgeiscontrolled by stainless steelframe,and the deptservice life andis not easy to be damaged；

8.Theinserting edgeis controlled by stainless steel frame,and the dept h can be adjusted manually according to the product size；
9.Therewinding traction adopts double cots topressand feed paper,and the pressureis controlledby pneumatic components；The taper control tech nology is used to control the tension to ensure the post overprint accurac y：
10.Thematerial rewinding unit can adopt single workposition structure（fullyautomatic non-stopmaterialreceiving isoptional）：3“or6”inflata bleairshaftloadingmode；Drivenbymotor,withclosed-looptensioncont rol and paper breaking shutdown device.
11.Independent drying system:builtininfraredwave heating drying（temp eratureadjustable）

Main Technical Parameters：
