Product introduction：

I.detailed description：

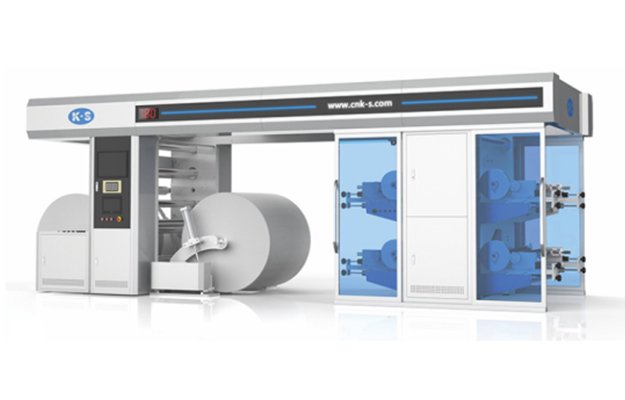

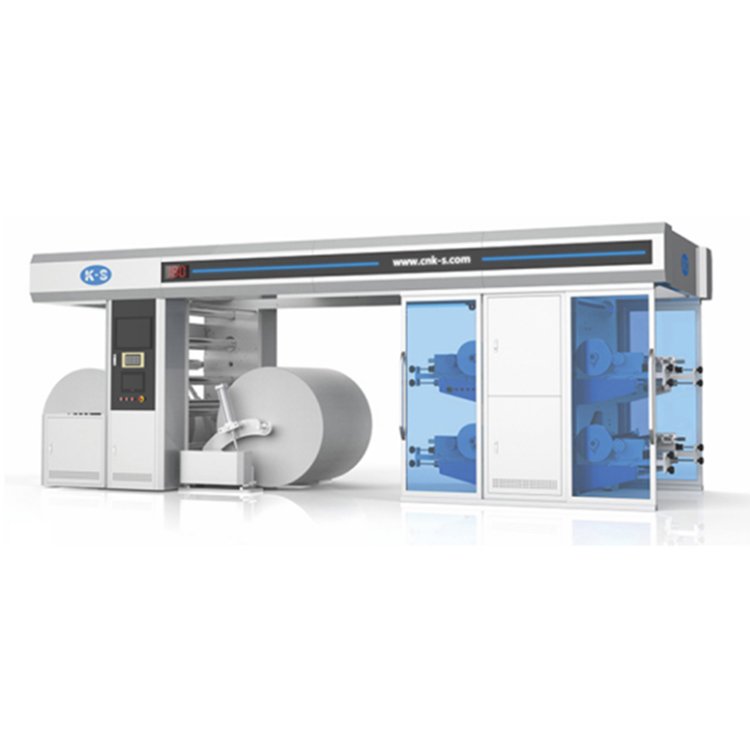

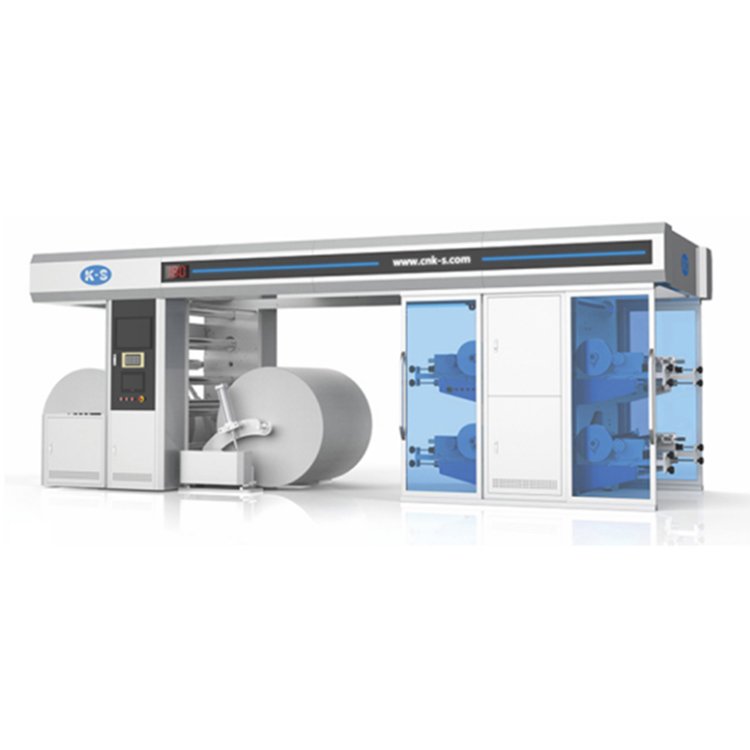

This machine is a flexible photosensitive resin plate as the base material, through the roller ink,liquid ink printing substrate.The machine is comp osed of feeding unit,tension control unit,traction feeding unit,printin g unit,drying unit,winding traction unit and rewinding unit and other ma in units,the whole machine is driven by servo,PC system centralized cont rol:The machine has reasonable structure,fast printing speed and simple operation.It is the ideal flexible packaging equipment in China at presen t.

II.characteristic：

1.The whole machine is centrally controlled by PLC system,fully automatic computer automatic color registration,high-definition color still picture monitoring,which is convenient for the observation of printing quality：

2.The unwinding unit adopts single station or double station structure；3

inflatable air shaft loading mode；Automatic deviation correction and c onstant tension control；Equipped with refueling warning and paper break s hutdown device；

3.The whole machine is driven by high-precision servo motor；

4.Unwinding traction adopts double cots to press and feed paper,and the pressure is controlled by pneumatic components:The taper control technolo gy is used to control the tension to ensure the color registration accurac y：

5.The printing unit adopts ceramic anilox roller ink transfer,two-way en closed chamber doctor blade,and the ink supply pump automatically supplie s ink；Hydraulic clutch of mesh roller and plate roller,automatic separat ion after shutdown:The independent motor drives the mesh roller to preven t the ink from solidifying on the surface of the mesh roller and blocking the mesh hole.

6.The rewinding traction adopts double cots to press and feed paper,and the pressure is controlled by pneumatic components；The taper control tech nology is used to control the tension to ensure the post overprint accuracy

7.The rewinding unit can adopt single station or double station structure：

3 inflatable air shaft loading mode；Driven by motor,with closed-loop t ension control and paper breaking shutdown device.

8.Independent drying system:built in infrared wave heating drying （tempe rature adjustable）

III.Substrate：

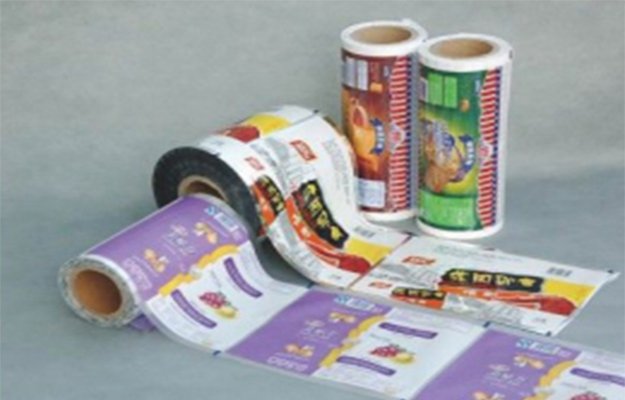

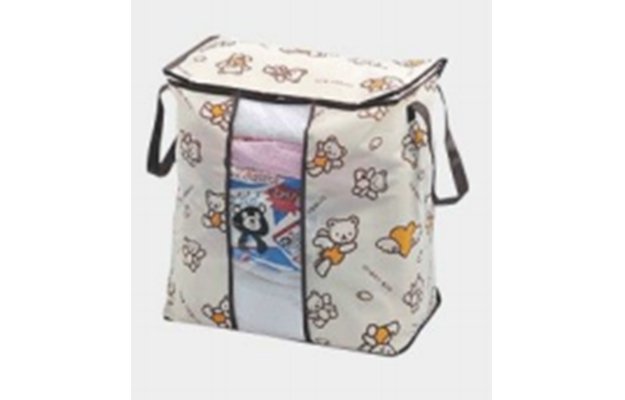

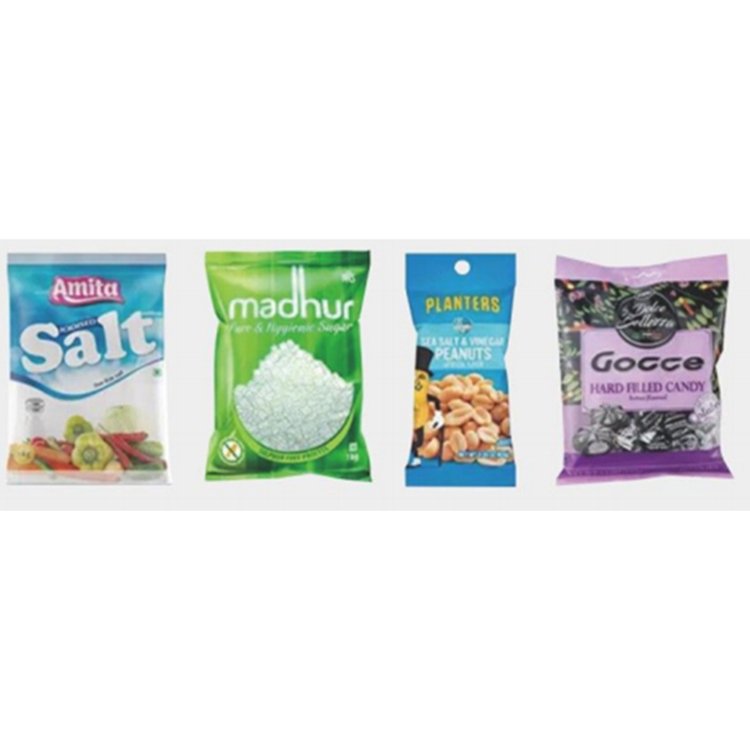

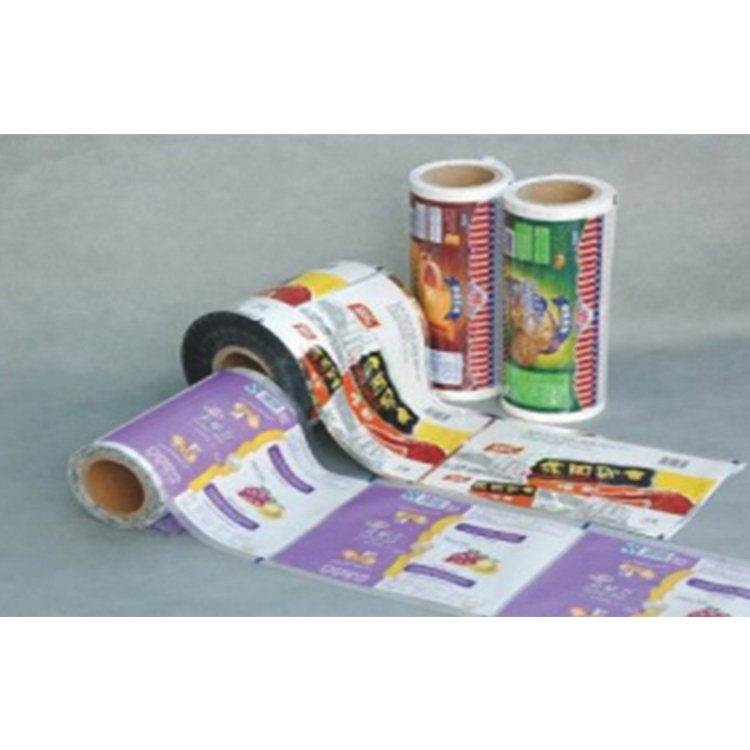

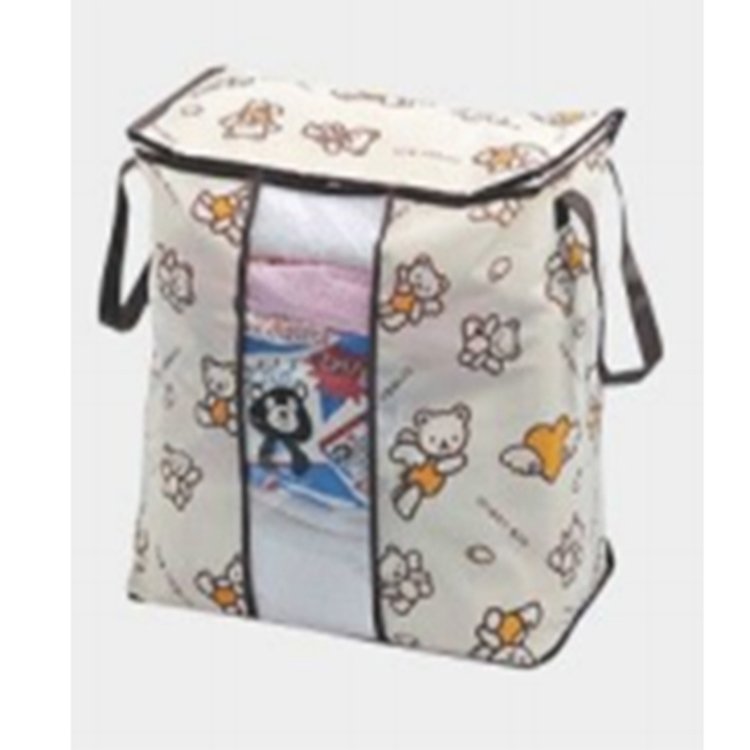

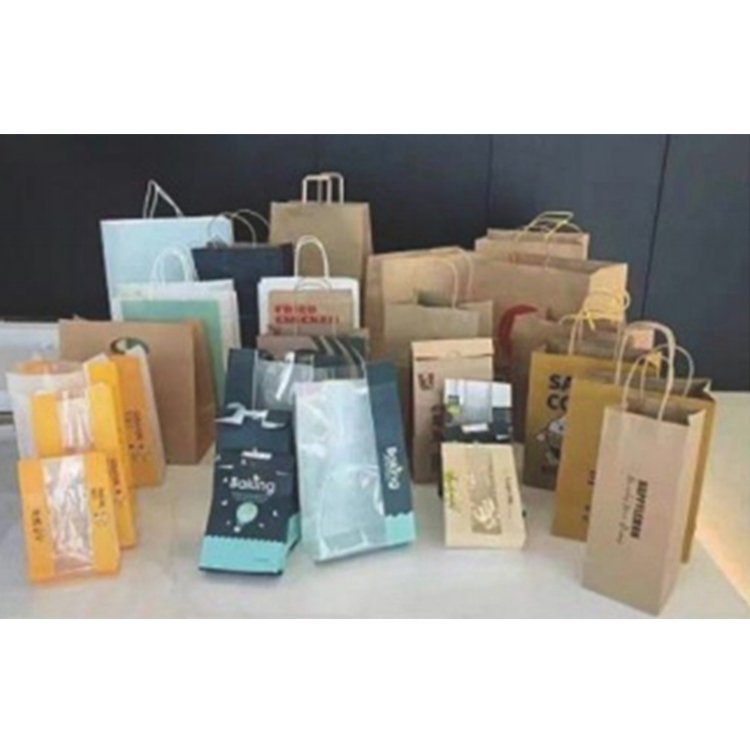

Plastic film,roll paper,non-woven fabric,woven bag,thin skin and other flexible packaging roll materials

Main Technical Parameters：
